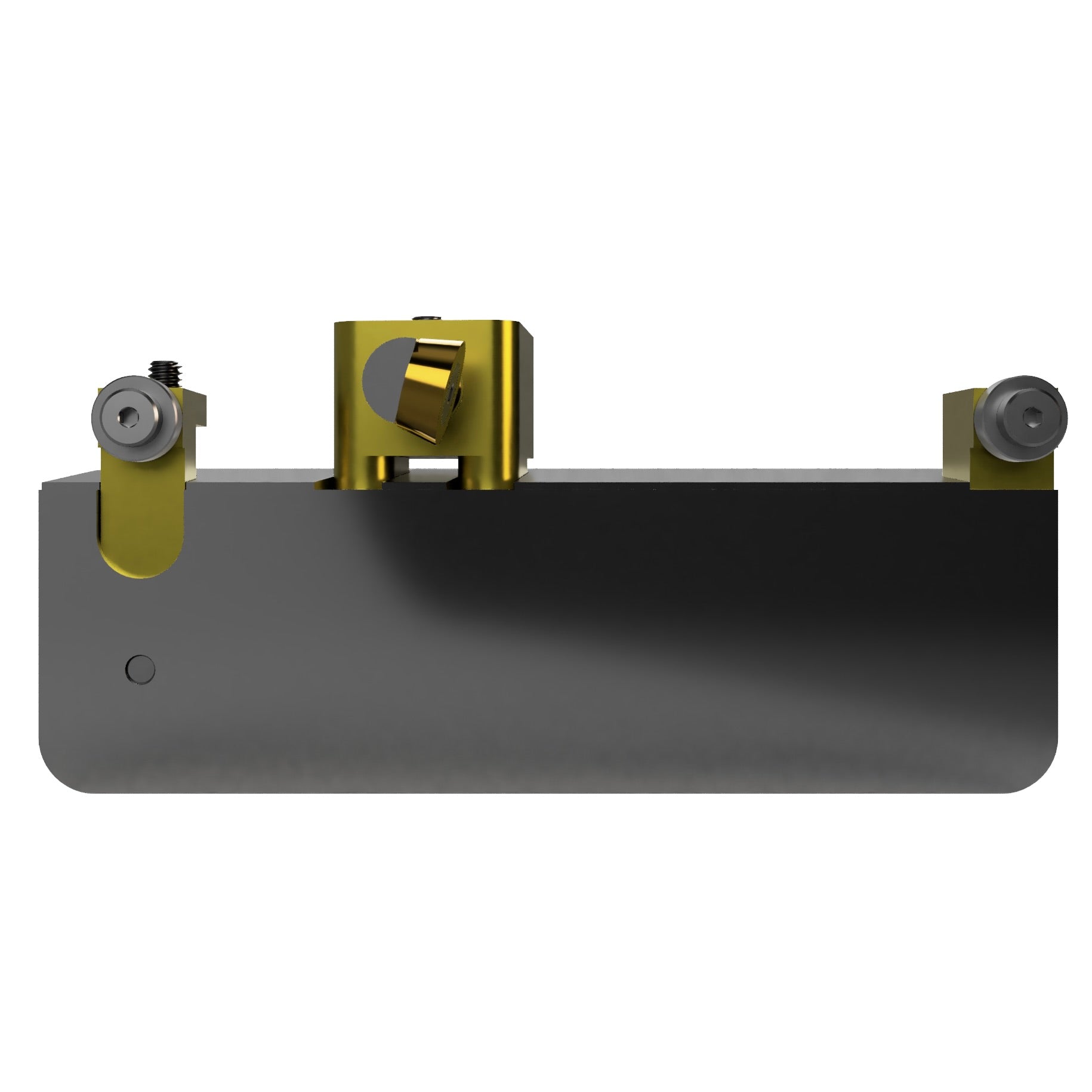

Sidewall Remover and File Guide

Sidewall Remover and File Guide

$199.00 USD
$199.00 USD
Sale Sold out
Cutting Insert

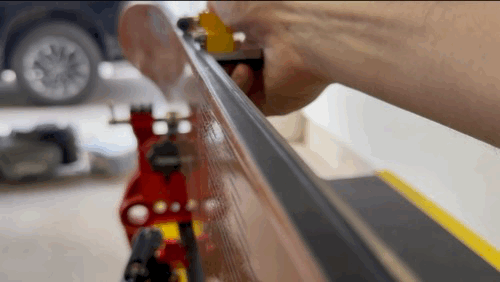

Sharpening edges without properly cleared sidewall is difficult. The Index Sidewall Remover makes sidewall removal, one of the most overlooked and challenging ski sharpening steps, smooth and repeatable. Plus, the tool can be disassembled and the stainless steel angle doubles as a file guide and stone guide for sharpening edges.

Designed and manufactured in Colorado, USA.

Benefits

- Two tools in one: sidewall planer base doubles as file guide for sharpening edges
- Freedom to use a round or square cutter for creating your preferred profile
- Smooth spring-loaded fine-threaded leadscrew for setting cutter position and depth of cut
- Adjustable roller bearing depth stop to help reduce gauging, chatter, and excessive material removal
- Repeatable material removal for each ski edge with lockable depth stop and lockable cutter extension
- Smooth glide with roller bearings fore and after of the cutter

Specifications

- 93° file guide bevel angle for 87° side edges
- CNC machined stainless steel file guide / sidewall remover base and toolholder shaft
- CNC machined and anodized 6000 series aluminum components
- Cutter position and cutter depth adjustment via smooth spring-loaded fine leadscrews
- 1.45" x 1.45" x 4.5" file guide / sidewall remover base
- Round 6mm radius carbide cutter included
- Square 6mm IC radius carbide cutter (optional)
- File/stones/clamp not included

View full details

Features

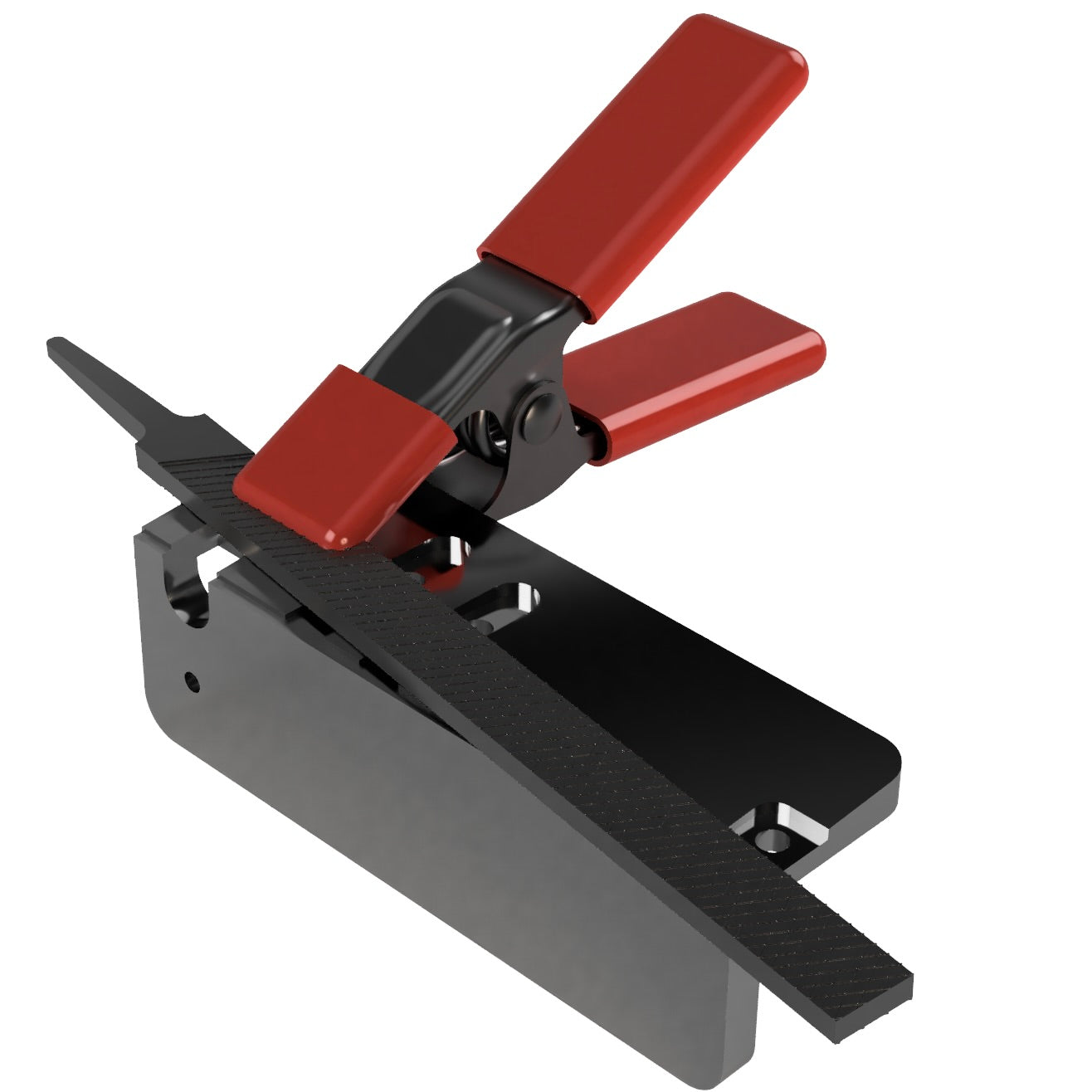

Dual use: sidewall remover & file guide

The Index Sidewall Remover also functions as file/stone guide when disassembled.

Cutter articulation fine adjustment

The cutter position over the sidewall is set with a smooth spring-loaded fine-threaded leadscrew for precise positioning. The position is locked with a set screw.

Cutter depth stop fine adjustment

Using the depth stop allows for light passes, reducing the possibility of chatter. The maximum depth of cut is set by the height of the bearing behind the cutter, adjusted by a spring-loaded thumb screw. A second thumb screw locks the bearing position for added stability during use.

Round or square cutter use

Materials

The Index Sidewall Remover and File Guide tool components are machined stainless steel and aluminum to create a precise and robust tool. The base is stainless steel so that it can double as a premium file or stone guide. The removable gold Sidewall Remover components are machined from 6000 series Aluminum and anodized for durability.
